Carbon Fiber Replacement Endpin Assembly for Upright Bass

(5 reviews) Write a Review

We ship worldwide! (Read this)

To all 50 US States

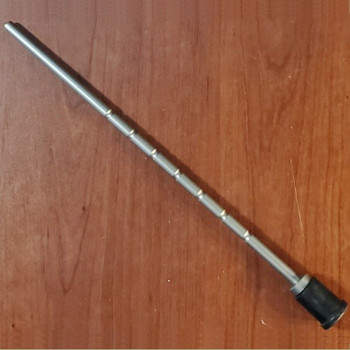

  • Carbon Fiber Replacement Endpin Assembly for Upright Bass, full view
  • Carbon Fiber Replacement Endpin Assembly for Upright Bass
  • Carbon Fiber Replacement Endpin Assembly for Upright Bass, closeup of spike and threaded rubber cap
  • Carbon Fiber Replacement Endpin Assembly for Upright Bass, dimension chart
Our Low Price: $84.00

Price shown may adjust with options selected below (if applicable)


Carbon Fiber Upright Bass ENDPIN

Why make an endpin of carbon fiber? CF has a high strength-to-weight ratio, while having a much lower density than steel. So this high-quality endpin assembly weighs only 248-250 grams (about 8.8 oz.) and has the strength and rigidity of a standard steel endpin, which is usually much heavier. It's also well-made, with a smooth and attractive - yet low key - flat black finish. It won't detract from the beauty of your instrument with flashy, shiny fittings; all visible parts are fabricated from a low-reflection flat black material. The full length of the pin is 16 inches, and its maximum extendable length from the BOTTOM OF THE BASS (once installed on the bass) is right around 15 inches.

The threads for the thumbscrew and inner collar - as well as the spike and its threads - are made of steel. The receiver assembly is a light and very strong composite material, while the shaft and some of the other parts are made of carbon fiber. The assembly also has a channel for your tailgut to guide through.


Comparison Shopping?
If you're comparing our carbon fiber endpin to other, less expensive ones you may have found on the web, this is just a suggestion to look carefully at the details. They can look like the same thing, but a closer look might reveal some significant differences.

For one, our endpin uses a threaded screw-on endpin cover, rather than just a rubber cap. Ours also has a steel end-point, and uses a collar tightener that surrounds the endpin to secure it; a common, simple thumbscrew can pierce and crush the carbon fibers, eventually causing damaging splits and dents.

Look, if you found a great deal, jump on it! Just make sure you're getting the same quality and feature set.

The plug (the part which inserts into the bass endblock) is 30mm tapering to 27.9mm over 42.5mm (according to my digital caliper measuring a representative endpin). The shaft itself is 14mm, and the diameter of the spike on the latest endpins is now 10mm, allowing the use of our Super Endpin ball (as shown in the Related Products below) as an option.

IMPORTANT NOTE: The thumbscrew assembly in this device exerts pressure around the endpin shaft, rather than against it. It is not recommended to use the carbon fiber shaft with your existing endpin receiver (instead of installing the one that comes with the shaft); the simple thumbscrew assembly common to most endpin receivers will likely pierce the fibers and split them, which, with regular use, will damage the shaft in short order.

View AllClose

5 Reviews

  • 5

    Carbon end pin

    Posted by Omar Rosado on Feb 17th 2023

    Great end pin. a bit narrower than my bass's end pin hole, may need to add the cost of resizing the end pin hole. Very solid end pin

  • 5

    Fits the Chadwick!

    Posted by damon smith on Apr 20th 2021

    One wrap of masking tape makes this slide right into the Chadwick. The pin it comes with is wobbly, this and a nice set up turns the Chadwick into a "real" bass. I have the Hybrid and with this pin it is decent second bass. This pin is rock solid and improves the tone.

  • 5

    Carbon Fiber Endpin

    Posted by Rick Knea on Feb 25th 2021

    If you're on the fence on which endpin to get, don't think any further! This CF endpin assembly was an easy install for my luthier and he said it was one of the best he's had his hands on. It's much lighter than the solid rod styles but extremely sturdy. The adjustment knob and assembly works very well and stays put once tightened! Yet again, another great product from great folks!!

  • 5

    Very good quality

    Posted by Gidon T on Jan 26th 2012

    Dear Mark and Bob, I just came back from my luthier after installing a CF endpin and an ebony tailpiece I bought from your store. My luthier said these items are very good quality, and this is from an old school master luthier... I just wish to thank you again, my bass sounds amazing and I love the endpin very much. You guys are top notch from order to luthier. Thank you very very much.

  • 5

    Great on my Kay

    Posted by Carter H on Nov 18th 2010

    To whom it may concern; I have just installed the carbon fiber endpin in my 1948 C-1 model Kay bass. The oversize of the taper was perfect to restore the hole. The Kay logo looks much better than the touch-up job I did on the badly worn original logo. First rate products and service. thanks...
